Laboratory Scientific Equipment Rotary Evaporator

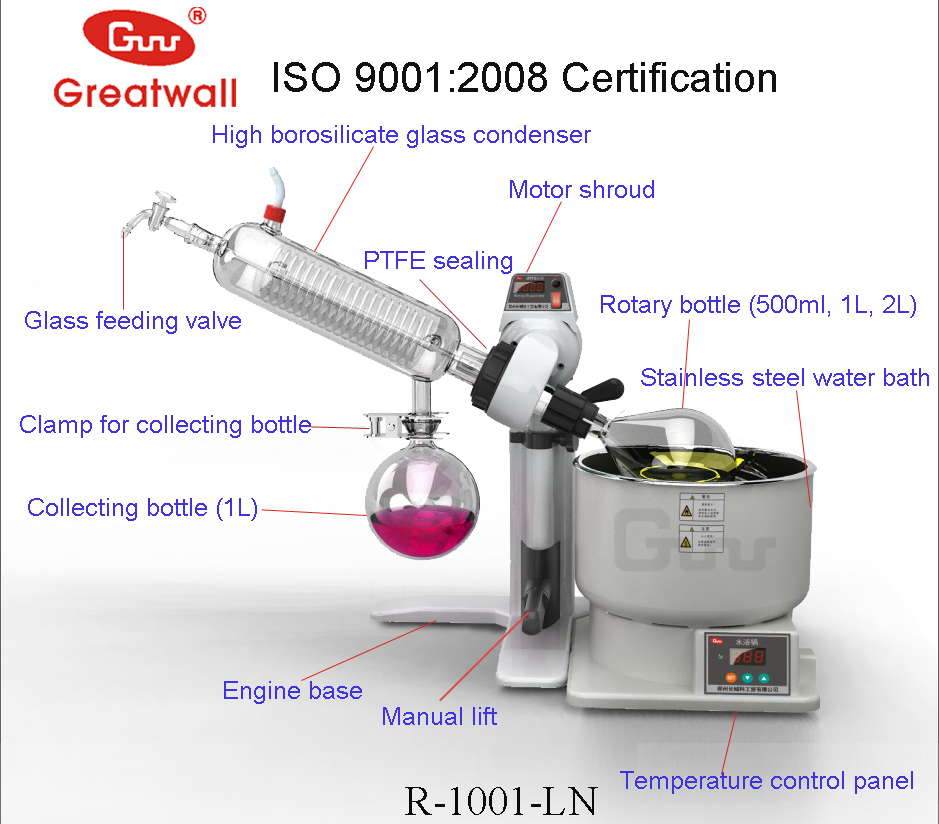

I: What are the specifications for 500ml~2L Rotary Evaporator?

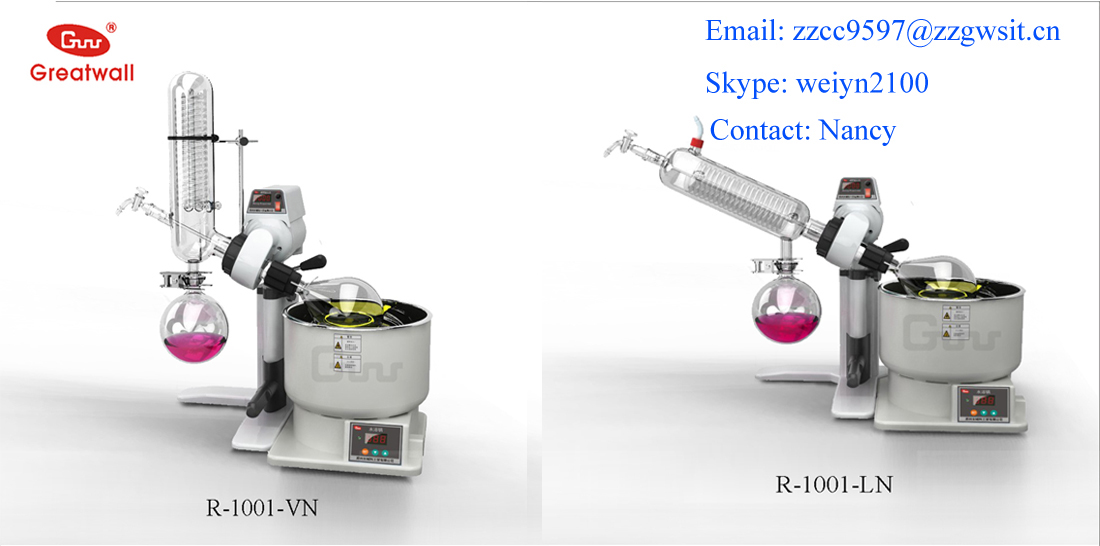

| Model | R-1001-VN | R-1001-LN |
| Rotary speed(Rpm) | 10~180 |
| Evaporating speed(ml/min) | 20 |
| Achievable vacuum(Pa) | 399.9 (below 3mmHg) |
| Temperature range(℃) | Room temp~100 |
| Temperature display | Keypad input Digital display |
| Speed-setting | Knob setting ,Digital display |
| Safety functions | Fuse |
| Functions of lifting table | Weight balancing Gliding elevating+ manual lifting | Weight balancing Gliding elevating+ manual lifting |
| Rotary motor(W) | 25 |
| Heater wattage(KW) | 1.5 |
| Condenser model | Vertical type water refrigerating | Lean type water refrigerating |
| Rotary bottle(L) | 0.5~2 |
| Collecting bottle(L) | 1 |
| Vacuum sealing | Double sealing rings made of Teflon+ Vinton materials |
| Water Bath size and volume(L) | φ260×140·7.4 | φ260×140·7.4 |
| Elevating stroke(mm) | 100+150 | 100+150 |
| Ambient temperature(℃) | 5~35 |
| Dimensions (mm) | 560L×320W×660H | 750L×320W×540H |
| Weight(kg) | 9.5 | 9.5 |
| Power Supply(V/Hz) | Single phase 110V/60Hz, 220V/50Hz,60Hz |
II:What fields does it can be used?
Can be used in the small and pilot scale test and production of fields like biology, pharmacy, chemical industry and foodstuff.
Can be connected to: vacuum pump, chiller/cooler as below:

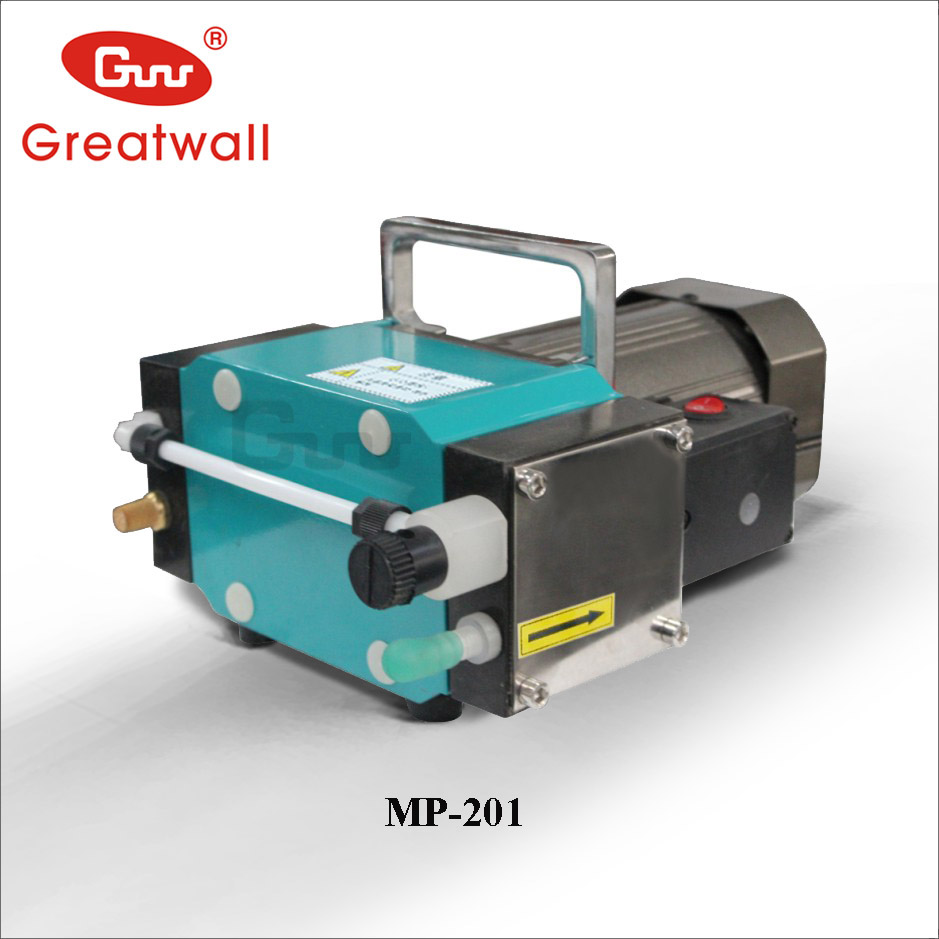

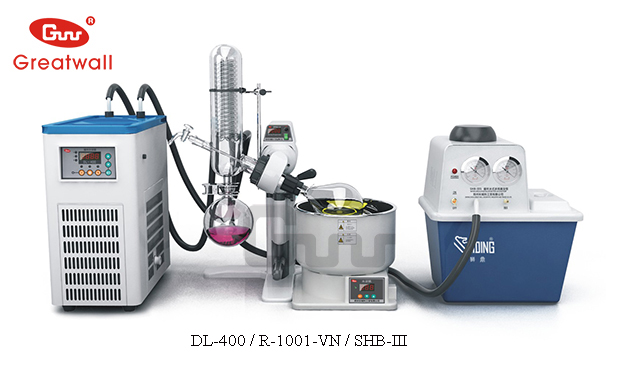

Recyclable Chiller(DL-400) + Rotary Evaporator(R-1001VN) + Diaphragm Vacuum Pump(MP-201) or Vacuum Pump(SHB-III)
III: What are our services for you?
1 year warranty, timely supply capacity,timely troubleshooting and fixing.
IV:What is story of our company?
Zhengzhou Greatwall Scientific Industrial and Trade Co.,Ltd was established in 1988. Re-registered in 2001. It is a technological innovative enterprise integrated with researching, developing, manufacturing and managing.
The company products including multiple-use circulating water vacuum pump, diaphragm vacuum pump, low temperature cooling liquid circulating pump, recyclable chiller, low temperature ( constant temperature ) stirring reaction bath, hermetic Refrigerated and Heating Circulators, pilot plant low temperature refrigerated equipment, Hermetic high temperature circulators, rotary evaporator,glass reactor, magnetic stirrer and other scientific experimental instrument and industrial related equipments.
Our company has become the first enterprise passed ISO9001 International Quality System Attestation in the same domestic industry.

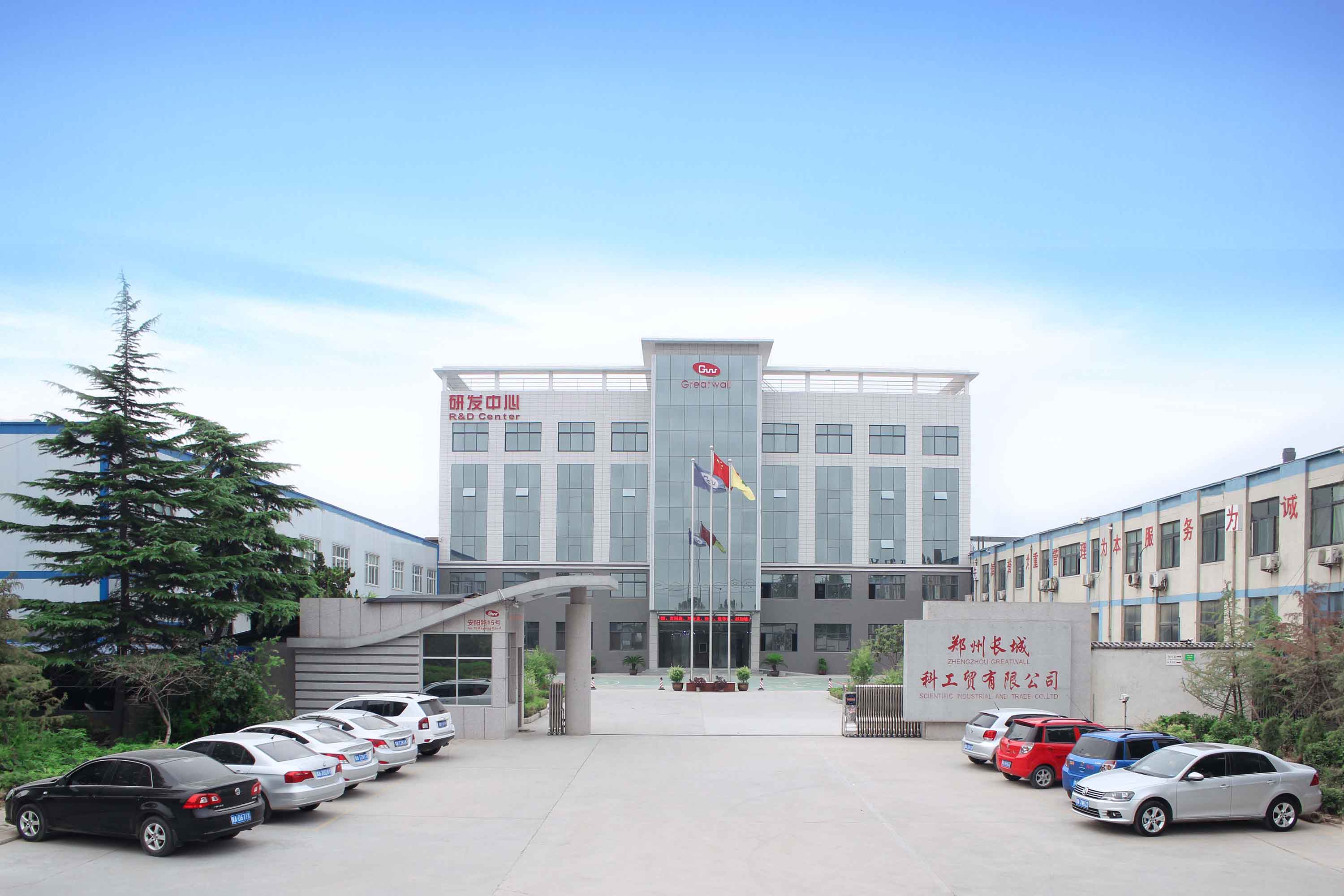

OFFICE BLOCK

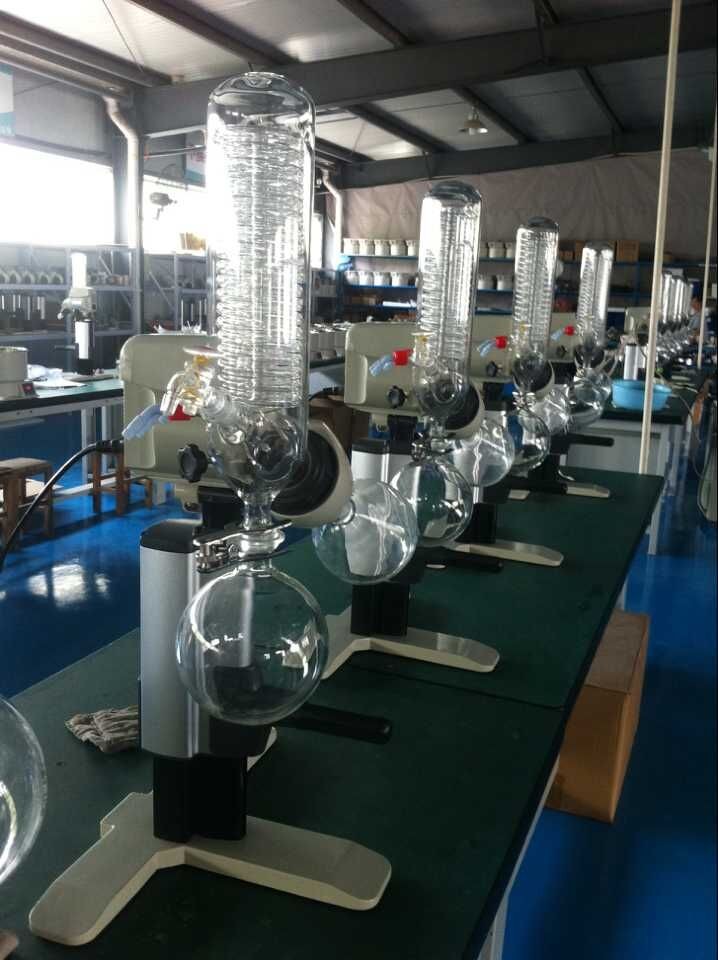

WORKSHOP
WORKSHOP
V:What is the certificate of our company?
ISO 9001:2008 Certificate
VI:Packaging and shipping
Wooden box, carton box, by air or by sea.
VII:Exhibition
VIII:Company honor
IX: How to contact us?
|
|
