Brief introduction of 500ml,1L,2L Rotary Evaporator:
A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. Rotary evaporator is most often and conveniently applied to separate "low boiling" solvents such as n-hexane or ethyl acetate from compounds which are solid at room temperature and pressure. However, careful application also allows removal of a solvent from a sample containing a liquid compound if there is minimal co-evaporation (azeotropic behavior), and a sufficient difference in boiling points at the chosen temperature and reduced pressure.
The Zhengzhou Greatwall 500ml,1L,2L (evaporating flask capacity) series rotary evaporators come with a modular heating bath, vertical glassware, and digital temperature/rotation control, with optimized bath volume allows for fast heat-up times. The condenser unit has special designed glass tubes that utilize surface extremely efficient. That’s why our SolventVap delivers reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap are the safety features, including dry-run protection, water bath over-temp shut-off protection, and fuse protection.
Rotary evaporator features a specially designed motor and worm gear to provide constant rotation at speeds from 10 to 180 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation that is effected by heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum. This reduces the boiling point of the solvents and removes the vapor phase making the process much more efficient. Each unit is also provided with an easy to use vacuum release and a continuous feed system, which allows more solvent to be drawn into the rotating flask without the need to stop the operation.
Digital water bath operates from ambient to 99°C (210°F) with PID temperature control stepping at 0.1°C. Heating coils are located directly inside the pan for the most efficient heating. Built-in overheat protector shuts down power in case of controller failure.

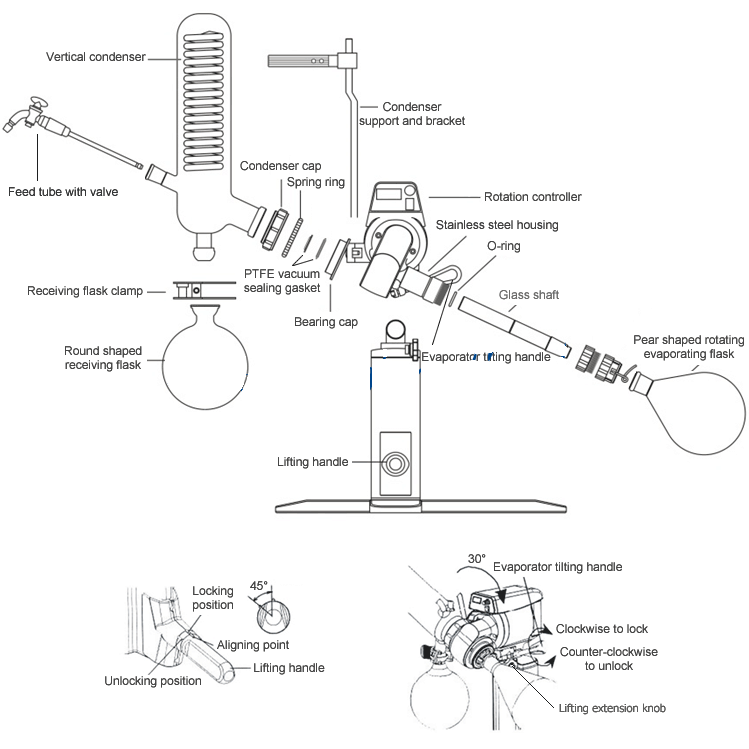

Standard Glassware Set 0.5L, 1L or 2 liters pear shaped evaporating flask, 1 liter round-bottomed receiving flask, and vertical condenser. Rotary evaporators with vertical glass condenser for are good for distillation of solvents with higher boiling points.
Features of 500ml,1L,2L Rotary Evaporator:
- Solvent-resistant PTFE and Viton gaskets ensuring long time operation.
- Specialized motor and extremely compact intermeshed worm and worm gear provide precise driving, for very quiet and vibration free operation.
- Downward condenser vacuum connector design ensures safe vacuum operation.
- Modular design (individual rotary and water bath modules) for easy future upgrade.

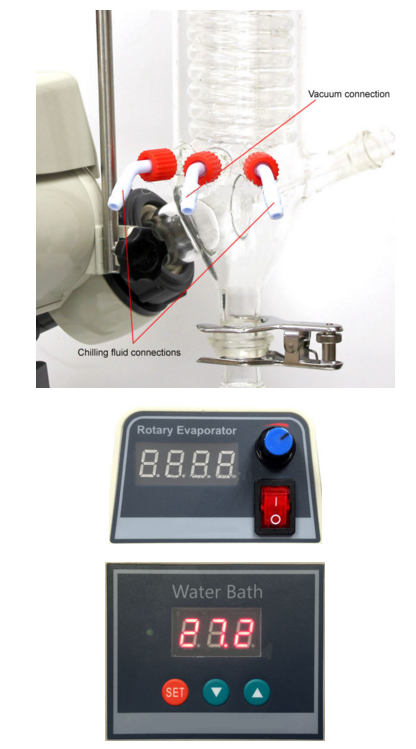

- Operate visually and easily with digital speed and temperature display.
- PID temperature controller for accurate and flexible temperature control.
- One year warranty and life-long service support.
Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.
Specifications of 500ml,1L,2L Rotary Evaporator:
| Electrical requirements | 220V 50Hz, 110V 60Hz single phase, (heater: 1500 watts, rotation motor: 25 watts) |
| Evaporating flask | Capacity: 0.5L,1L or 2L
Rotation speed: 10 to 180 rpm
Evaporating speed: 20 ml per minute
Lifting: weight balancing manual control with lock
Max lifting distance: 100mm (extendable to 150mm) |
| Receiving flask | 1 liter |
| Water bath | Temperature range: ambient to 99° (210°F)
Temperature controller: digital
Capacity: 7.4L
Material: stainless steel
Dimensions: 10" diameter x 5" depth x 9.75" height
Media: water
Number of heaters: one |
| Vacuum level | < 3 torrs(399.9Pa) |
| Vacuum sealing | PTFE + Viton gaskets |
| Safety | Dry-run, over-temp shut-off, fuse protections |
| Unit/shipping weight | 16KG |
| Unit/shipping dimensions | 66*54*47CM |

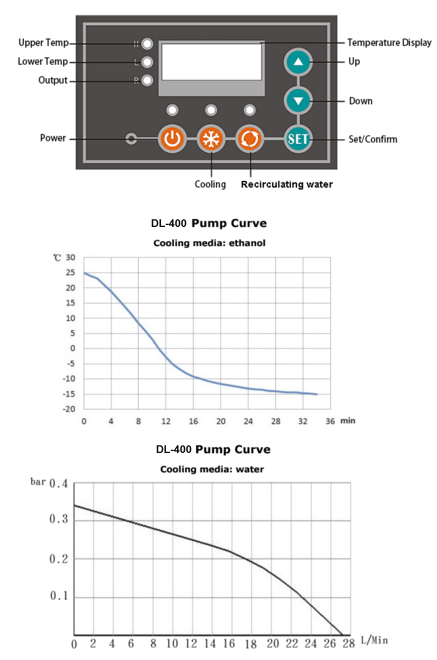

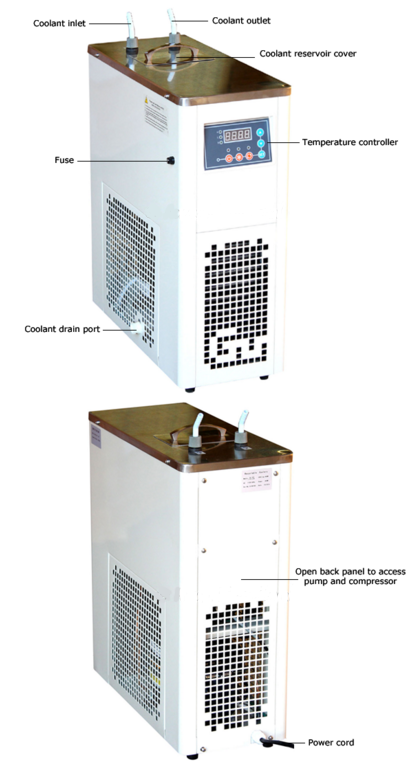

 | Click here for specs for -15℃ 3L Volume recirculating chiller Click here for specs for -30 ℃ 10L Volume recirculating chiller |

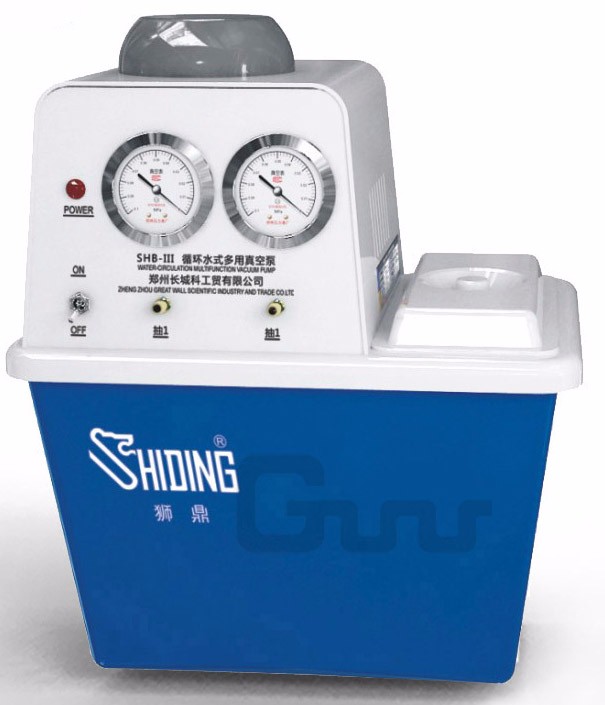

 | Click here for 2-Head Recirculating Water Vacuum Pump |

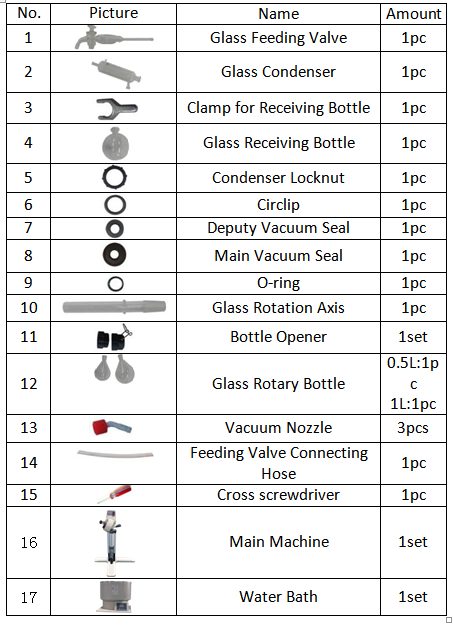

Packing list for 2L rotary evaporator:
Certification:
ISO9001:2008
![]()
|
|

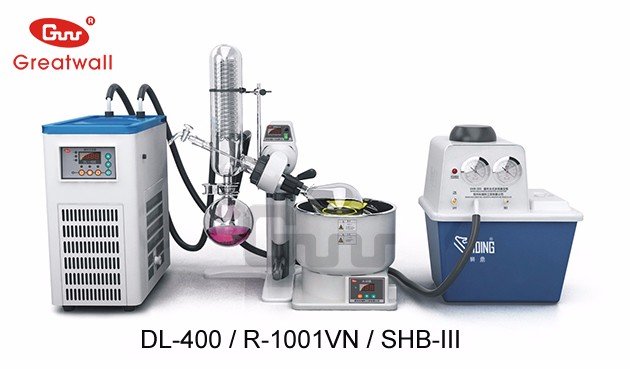

Zhengzhou Greatwall 2L Rotary Evaporator with Chiller & Pump 110V 220V Images
|
