Product Description
A rotary evaporator is a device used in chemical laboratories for the efficient, gentle removal of solvents from samples by evaporation. Rotary evaporator is most often used to separate solvents with low boiling points, such as n-hexane or ethyl acetate, from compounds which are solid at room temperature and pressure. However, careful application also allows removal of a solvent from a sample containing a liquid compound, if there is minimal co-evaporation (azeotropic behavior), and a sufficient different in boiling points at the chosen temperature and reduced pressure.
Specifications:
| Model | R-1005 | R-1010 | R-1020 | R-1050 |
| Rotary Bottle | 5L,diameter of flange opening: Φ50mm | 10L,diameter of flange opening:Φ95mm | 20L, diameter of flange opening:Φ125mm | 50L,diameter of flange opening:Φ125mm |
| Collecting bottle | 3L | 5L | 10L | 20L |
| Speed-regulation of main machine | Digital display, DC stepless speed-regulation |
| Rotary speed of main Machine | 20 to140r/min,digital display of rotary speed | 20 to130r/min,digital display of rotary speed | 20 to130r/min,digital display of rotary speed | 20 to110r/min,digital display of rotary speed |
| Rotaring motor(W) | 250W |
| Condensing tube | Vertical type water refrigerating | Standing,main+auxiliary cooling and highly effcient3 circulating coldtrap |
| Heating boiler | stainless steel water bath oil bath |
| Temperature control | Digital display, temperature control,water bath: 0~99℃ Oil bath: RT~180℃ |
| Achievable vacuum | 399.9Pa (below 3mmHg) |
| Evaporating capability | Water≥2L/h Ethanol≥4L/h | Water≥3.2L/h Ethanol≥6.5L/h | Water≥5L/h Ethanol≥11L/h | Water≥9L/h Ethanol≥19L/h |
| Elevating function | Electric elevation | Electric + manual elevation |
| Elevating stroke | 0~150mm | 0~160mm | 0~190mm | 0~180mm |
| Rated power supply | 1~220V/50Hz,60Hz | 1~220V/50Hz,60Hz , 3~380V/50Hz |
| Power of power supply | 2.3KW | 3.8KW | 6.3KW | 6.3KW |
Features:
- Solvent-resistant PTFE and Viton gaskets ensuring long time operation.
- Specialized motor with compact intermeshed worm and worm gear provide precise, vibration-free operation.
- Modular design(individual rotary and water bath modules) for easy future upgrade.
- Easy multi-level manual evaporating flask lifting with lock.
- Operate visually and easily with digital speed and temperature display.
-
|
|

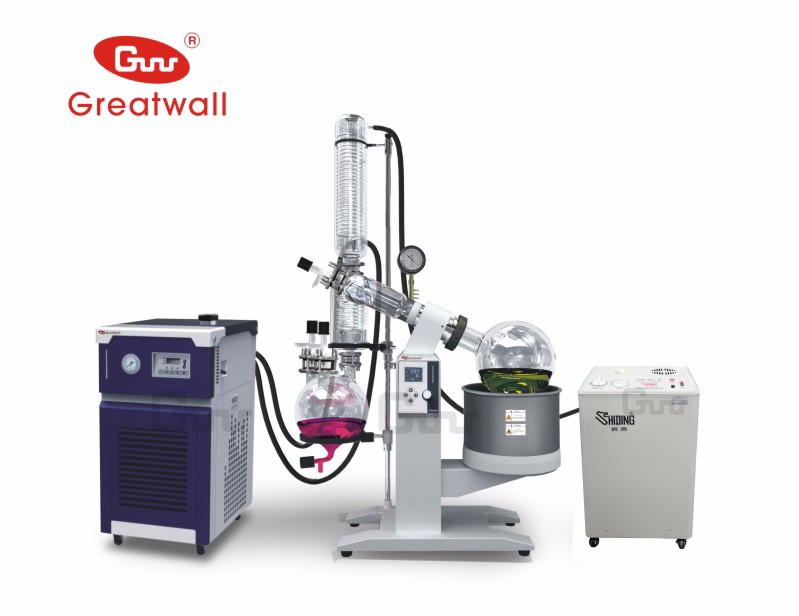

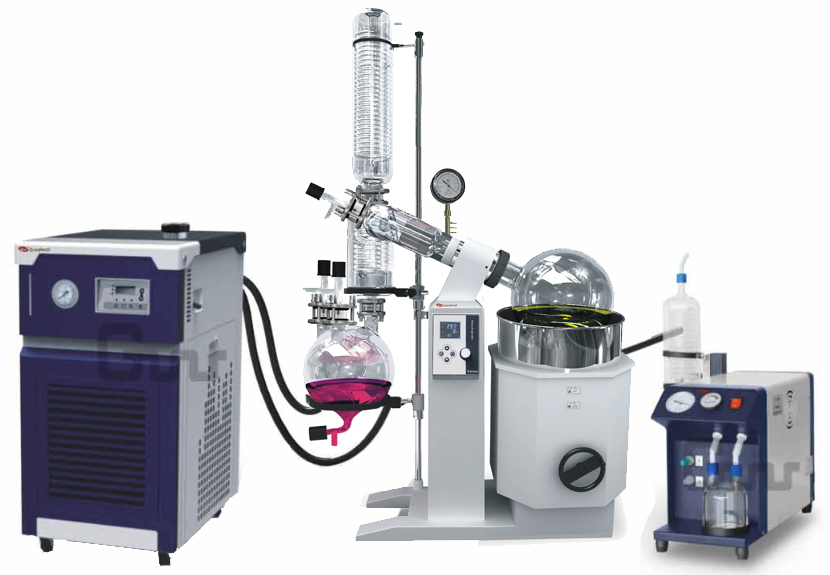

20L Rotary Evaporator R-1020 with Chiller and Vacuum pump Images
|
